RouterOS如何配置NATv6

我写这篇文章的目的是，记录配置方法，方便后期忘记时查阅。

感谢sagit提供的视频教学

感谢狐狸大佬提供的IPv6防火墙配置

为什么要配置NATv6？

  1. 方便做我们做DDNS。
  2. 所有外部IPV6流量都会先经过RouterOS防火墙。
  3. 简化对外服务的配置流程。

一，开启RouterOS IPV6

打开winbox客户端，找到IPv6设置。

RouterOS如何配置NATv6

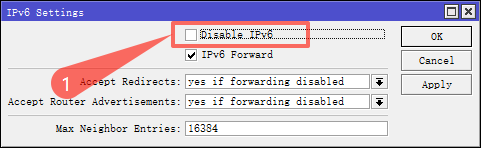

检查Disable IPv6是否处于未勾选的状态，如果勾选了，请取消勾选。

RouterOS如何配置NATv6

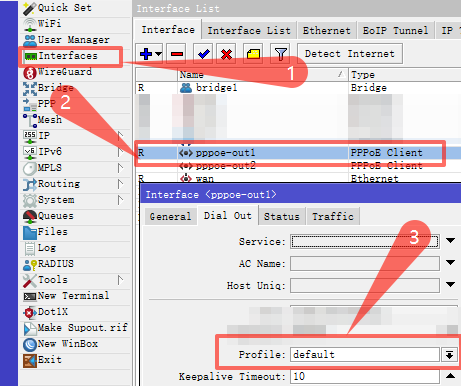

检查pppoe使用的是否是default配置，如果不是请切换为default。

RouterOS如何配置NATv6

二，配置IPv6地址和ND通告、DHCPv6 Server

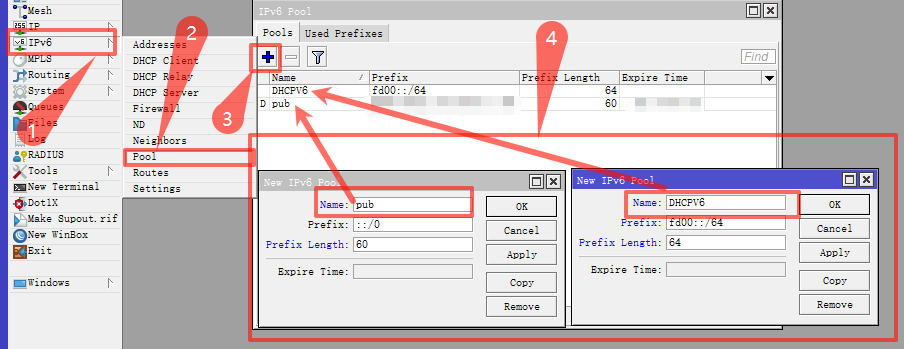

1，创建IPv6地址池

  1. 创建一个公网地址池名为pub
  2. 创建一个私有地址池名为DHCPV6

ps：你自己想取什么名字就取什么名字，不用跟我完全一样。

RouterOS如何配置NATv6

2，获取运营商下发的ipv6公网地址

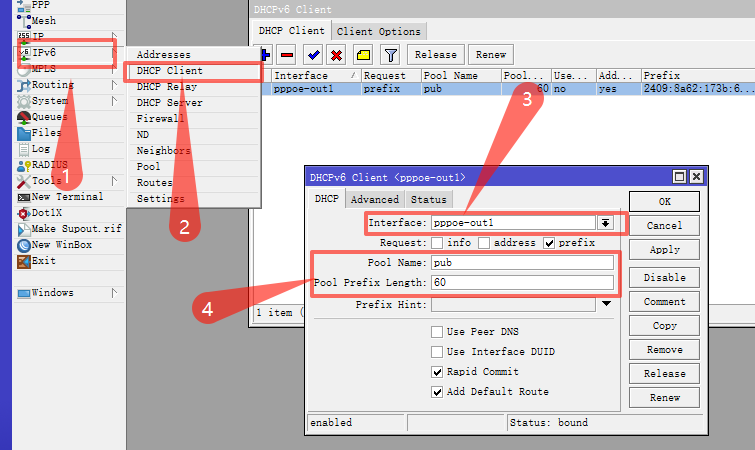

  1. 打开IPv6 DHCPv6 Client
  2. Pool Name选中pub，也就是之前创建的公网地址池
  3. Apply应用更改，然后关闭窗口
RouterOS如何配置NATv6

3，为接口配置IPv6地址

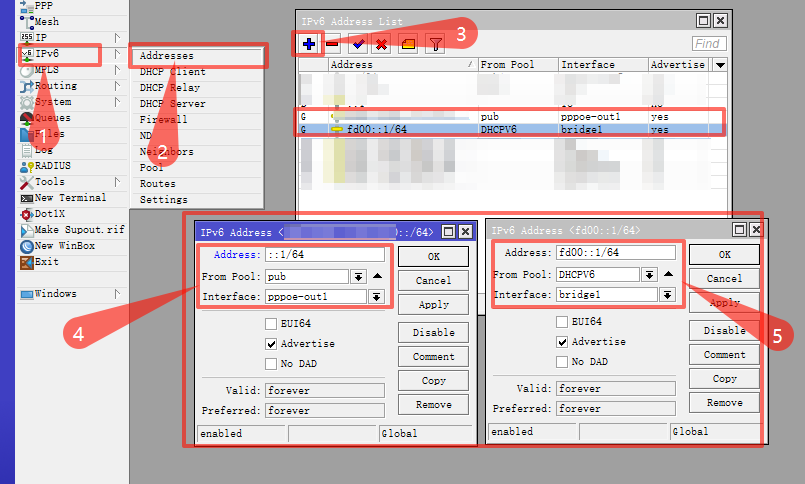

  1. 打开IPv6 Address List设置
  2. 为PPPoe接口配置公网地址，Address填::1/64，From Pool选择pub，Interface选择pppoe-outx
  3. 为bridge接口分配私有IPv6地址，用于内部网络设备之间的通信，Address填fd00::1/64，From Pool选择DHCPV6，Interface选择bridgex

ps：这里的私有IPv6地址（ULA ）我是以fd00::1/64作为演示的，你可以查阅以下引用内容自行配置。

根据 RFC4193 – Unique Local IPv6 Unicast Addresses 中给出的定义，IPv6 ULA 地址前缀为 FC00::/7 。

该前缀包含 FC00::/8 和 FD00::/8 两个部分，严格意义上 ULA 目前应该使用 FD00::/8 。

对于 IPv6 ULA 地址，在以下使用场景中可考虑创建并分配：

  • 仅路由器本身具有 IPv6 GUA 地址，内网环境需使用 IPv6 ULA 地址并搭配 NPTv6 进行公网访问的场景
  • 内网环境中的部分服务，需使用某固定的 IPv6 地址，且 IPv6 LLA 地址无法满足使用需求的场景
  • 内网环境中需使用 IPv6 ULA 地址进行跨路由器组网的场景

在实际使用场景下，建议使用类似 RFC4193 IPv6 Generator 的工具来生成符合规范的 IPv6 ULA 地址。

该工具只需要输入接口（例如 RouterOS 的 bridge1 ）的 MAC 地址即可。

RouterOS如何配置NATv6

4，配置ND通告或DHCPV6 Server，二选一

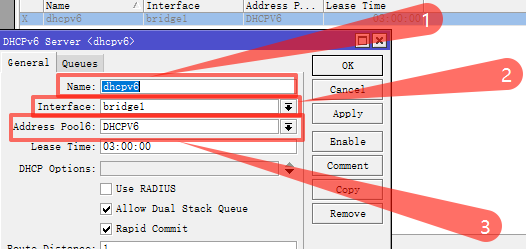

1，配置DHCPV6 Server，Name自己想，Interface选择bridge，Address Pool6选私有地址池。

RouterOS如何配置NATv6

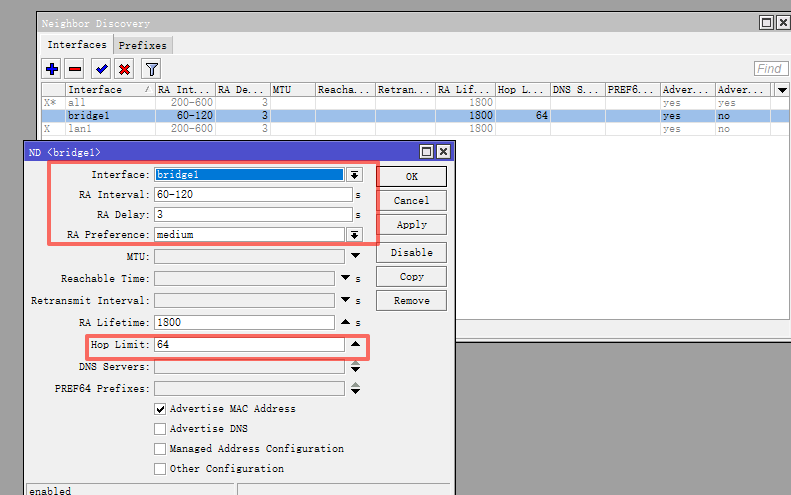

2，配置ND通告，Interface选bridge，其他的请自行决定。

RouterOS如何配置NATv6

三，配置IPv6防火墙

1，配置源地址伪装

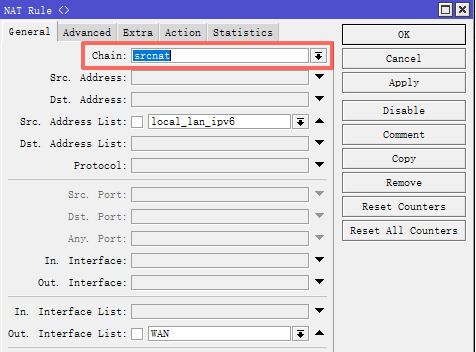

  1. General设置中选择srcnat链
  2. Out Interface List 选择WAN

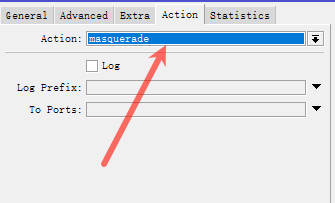

  3. Action设置中选择masquerade
RouterOS如何配置NATv6
RouterOS如何配置NATv6

2，完整防火墙规则配置

请参考狐狸 Nomad大佬的配置文件

##       Filter 规则 21 条
##          NAT 规则  6 条
##       Mangle 规则  1 条
##          Raw 规则 49 条
## Address-list 规则 22 条

/ipv6 firewall address-list

add address=fd00::/64 comment="lanconf: local LAN IPv6 ULA" list=local_lan_ipv6

add address=fe80::/10 comment="defconf: RFC6890 - link local" list=no_forward_ipv6
add address=ff00::/8 comment="defconf: RFC3513 - multicast" list=no_forward_ipv6

add address=::1/128 comment="defconf: RFC6890 - Loopback" list=bad_ipv6
add address=0000::/96 comment="defconf: RFC4291 - IPv4 compatible" list=bad_ipv6
add address=::ffff:0:0/96 comment="defconf: RFC6890 - IPv4 mapped" list=bad_ipv6
add address=2001::/23 comment="defconf: RFC6890 - reserved" list=bad_ipv6
add address=2001:db8::/32 comment="defconf: RFC6890 - documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: RFC4843 - ORCHID" list=bad_ipv6
add address=2001:20::/28 comment="defconf: RFC7343 - ORCHIDv2" list=bad_ipv6

add address=100::/64 comment="defconf: RFC6890 - discard-only" list=not_global_ipv6
add address=2001::/32 comment="defconf: RFC6890 - TEREDO" list=not_global_ipv6
add address=2001:2::/48 comment="defconf: RFC6890 - benchmarking" list=not_global_ipv6
add address=fc00::/7 comment="defconf: RFC6890 - unique local" list=not_global_ipv6
add address=fec0::/10 comment="defconf: RFC3879 - site local" list=not_global_ipv6

add address=::/128 comment="defconf: RFC6890 - unspecified" list=bad_src_ipv6
add address=ff00::/8 comment="defconf: RFC3513 - multicast" list=bad_src_ipv6
add address=::/128 comment="defconf: RFC6890 - unspecified" list=bad_dst_ipv6

add address=::/128 comment="ddosconf: DDoS" list=ddos_targets_ipv6
add address=::/128 comment="ddosconf: DDoS" list=ddos_attackers_ipv6


/ipv6 firewall filter

add action=accept chain=input comment="defconf: accept ICMPv6 after RAW" protocol=icmpv6
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept UDP traceroute" dst-port=33434-33534 protocol=udp
add action=accept chain=input comment="defconf: accept DHCPv6-Client prefix delegation" dst-port=546 protocol=udp dst-address=fe80::/10 log=yes log-prefix="[ipv6-pd]"
add action=drop chain=input comment="defconf: drop all not from LAN" in-interface-list=!LAN

add action=accept chain=forward comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop bad forward IPs" src-address-list=no_forward_ipv6
add action=drop chain=forward comment="defconf: drop bad forward IPs" dst-address-list=no_forward_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6 after RAW" protocol=icmpv6
add action=drop chain=forward comment="defconf: drop all not from LAN" in-interface-list=!LAN

add action=jump chain=forward comment="ddosconf: DDoS SYN-ACK" protocol=tcp tcp-flags=syn,ack jump-target=detect-syn-ack
add action=return chain=detect-syn-ack comment="ddosconf: DDoS SYN-ACK" dst-limit=128,128,src-and-dst-addresses/10s
add action=add-dst-to-address-list chain=detect-syn-ack comment="ddosconf: DDoS SYN-ACK" address-list=ddos_targets_ipv6 address-list-timeout=10m
add action=add-src-to-address-list chain=detect-syn-ack comment="ddosconf: DDoS SYN-ACK" address-list=ddos_attackers_ipv6 address-list-timeout=10m log=yes log-prefix="[sa-flood-ipv6]"

add action=jump chain=forward comment="ddosconf: DDoS" connection-state=new jump-target=detect-ddos
add action=return chain=detect-ddos comment="ddosconf: DDoS" dst-limit=640,640,src-and-dst-addresses/10s
add action=add-dst-to-address-list chain=detect-ddos comment="ddosconf: DDoS" address-list=ddos_targets_ipv6 address-list-timeout=10m
add action=add-src-to-address-list chain=detect-ddos comment="ddosconf: DDoS" address-list=ddos_attackers_ipv6 address-list-timeout=10m log=yes log-prefix="[ddos-ipv6]"


/ipv6 firewall nat
add action=masquerade chain=srcnat comment="lanconf: masquerade IPv6 ULA" out-interface-list=WAN src-address-list=local_lan_ipv6


/ipv6 firewall mangle

add action=change-mss chain=forward comment="defconf: fix IPv6 mss for WAN" new-mss=clamp-to-pmtu passthrough=yes protocol=tcp tcp-flags=syn


/ipv6 firewall raw

add action=accept chain=prerouting comment="defconf: enable for transparent firewall" disabled=yes

add action=drop chain=prerouting comment="ddosconf: DDoS" dst-address-list=ddos_targets_ipv6 src-address-list=ddos_attackers_ipv6

add action=drop chain=prerouting comment="defconf: drop IPv6 extension headers types 0,43" headers=hop,route:contains

add action=accept chain=prerouting comment="defconf: accept local Loopback" in-interface=lo

add action=accept chain=prerouting comment="defconf: RFC4291, section 2.7.1" dst-address=ff02:0:0:0:0:1:ff00::/104 icmp-options=135 protocol=icmpv6 src-address=::/128

add action=drop chain=prerouting comment="defconf: drop bogon IPs" src-address-list=bad_ipv6
add action=drop chain=prerouting comment="defconf: drop bogon IPs" dst-address-list=bad_ipv6
add action=drop chain=prerouting comment="defconf: drop bad SRC IPv6" src-address-list=bad_src_ipv6
add action=drop chain=prerouting comment="defconf: drop bad DST IPv6" dst-address-list=bad_dst_ipv6

add action=drop chain=prerouting comment="defconf: drop non global from WAN" in-interface-list=WAN src-address-list=not_global_ipv6

add action=drop chain=prerouting comment="defconf: drop UDP port 0" port=0 protocol=udp log=yes log-prefix="[udp-port-0]"

add action=jump chain=prerouting comment="defconf: jump to TCP chain" jump-target=bad-tcp protocol=tcp
add action=jump chain=prerouting comment="defconf: jump to ICMPv6 chain" jump-target=icmp6 protocol=icmpv6

add action=accept chain=prerouting comment="defconf: accept local multicast scope" dst-address=ff02::/16
add action=drop chain=prerouting comment="defconf: drop other multicast destinations" dst-address=ff00::/8

add action=accept chain=prerouting comment="defconf: accept everything else from LAN" in-interface-list=LAN
add action=accept chain=prerouting comment="defconf: accept everything else from WAN" in-interface-list=WAN

add action=drop chain=prerouting comment="defconf: drop the rest"

add action=drop chain=bad-tcp comment="defconf: drop TCP port 0" port=0 protocol=tcp log=yes log-prefix="[tcp-port-0]"
add action=drop chain=bad-tcp comment="defconf: TCP flag filter" protocol=tcp tcp-flags=!fin,!syn,!rst,!ack
add action=drop chain=bad-tcp comment="defconf: drop flags fin,syn" protocol=tcp tcp-flags=fin,syn
add action=drop chain=bad-tcp comment="defconf: drop flags fin,rst" protocol=tcp tcp-flags=fin,rst
add action=drop chain=bad-tcp comment="defconf: drop flags fin,!ack" protocol=tcp tcp-flags=fin,!ack
add action=drop chain=bad-tcp comment="defconf: drop flags fin,urg" protocol=tcp tcp-flags=fin,urg
add action=drop chain=bad-tcp comment="defconf: drop flags syn,rst" protocol=tcp tcp-flags=syn,rst
add action=drop chain=bad-tcp comment="defconf: drop flags rst,urg" protocol=tcp tcp-flags=rst,urg

add action=accept chain=icmp6 comment="defconf: rfc4890 DST unreachable" icmp-options=1:0-255 protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 packet too big" icmp-options=2:0-255 protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 time exceeded" icmp-options=3:0-1 protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 parameter problem" icmp-options=4:0-2 protocol=icmpv6

add action=accept chain=icmp6 comment="defconf: rfc4890 echo request" icmp-options=128:0-255 protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 echo response" icmp-options=129:0-255 protocol=icmpv6

add action=drop chain=icmp6 comment="defconf: rfc4890 drop ll if hop-limit!=255" dst-address=fe80::/10 hop-limit=not-equal:255 protocol=icmpv6 log=yes log-prefix="[ipv6-hop-limit]"

add action=accept chain=icmp6 comment="defconf: rfc4890 multicast listener query only LAN" src-address=fe80::/10 icmp-options=130:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 multicast listener report only LAN" src-address=fe80::/10 icmp-options=131:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 multicast listener done only LAN" src-address=fe80::/10 icmp-options=132:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 multicast listener report v2 only LAN" src-address=fe80::/10 icmp-options=143:0-255 in-interface-list=LAN protocol=icmpv6

add action=accept chain=icmp6 comment="defconf: rfc4890 router solic only LAN" hop-limit=equal:255 icmp-options=133:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 router advert only LAN" hop-limit=equal:255 icmp-options=134:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 neighbor solic only LAN" hop-limit=equal:255 icmp-options=135:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 neighbor advert only LAN" hop-limit=equal:255 icmp-options=136:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 inverse ND solic only LAN" hop-limit=equal:255 icmp-options=141:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 inverse ND advert only LAN" hop-limit=equal:255 icmp-options=142:0-255 in-interface-list=LAN protocol=icmpv6

add action=accept chain=icmp6 comment="defconf: rfc4890 certificate path solicitation only LAN" hop-limit=equal:255 icmp-options=148:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 certificate path advertisement only LAN" hop-limit=equal:255 icmp-options=149:0-255 in-interface-list=LAN protocol=icmpv6

add action=accept chain=icmp6 comment="defconf: rfc4890 multicast router advertisement only LAN" src-address=fe80::/10 hop-limit=equal:1 icmp-options=151:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 multicast router solicitation only LAN" src-address=fe80::/10 hop-limit=equal:1 icmp-options=152:0-255 in-interface-list=LAN protocol=icmpv6
add action=accept chain=icmp6 comment="defconf: rfc4890 multicast router termination only LAN" src-address=fe80::/10 hop-limit=equal:1 icmp-options=153:0-255 in-interface-list=LAN protocol=icmpv6

add action=drop chain=icmp6 comment="defconf: drop all other ICMPv6" protocol=icmpv6
